China supplier Ear tag fiber laser Marking Machines

Product description:

Share With:

We're here to help:
Easy ways to get the answers you need.
Send E-mail Chat Now

China supplier  Ear tag fiber laser Marking Machines

Feature:

1.fiber laser marking machine is the 3th-generation laser marking machine which is manufactured by the most advanced laser technology in current of the world.
2.The quality of laser beam is very good(near to the limit of diffraction,exporting TEM00 fundamental transverse mode, M2  near to 1,expanding angle of laser beam is only 1/4 of the diode laser marker),Therefore it is  very  suitable for delicate marking.
3.With high repeat frequency of the pulse,power output steadily,energy surge of single pulse is lower than 1%,BML-F can achieve high speed marking,and control the depth and shape of the facula .
4.The processing speed of BML-F is 2-3 times than the traditional marking machine.
5.Air cooling,the size of the machine is very small.
6.Long life,ultra-low power consumption,the conversion efficiency is more than 30%,the unit power of the machine is no more than 0.5kw!

7.With red light positioning device accurately indicates the location of the processing of the laser head, eliminate the trouble about manual positioning.



Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials


appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils


stainless steel products and other industries.


Details:


Application Industries  :

Mobile phone keypad, plastic translucent keys, electronic components, integrated circuits (IC), electrical appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils, stainless steel products and other industries.
Parameters:


Model

igm10FP/20FP/30FP,igm 10F/20F/30F

Laser power

10W/20W/30W

Laser Wavelength

1065±10nm

Q-frequency

20KHz~100KHz

Divergence

0.3mard

Marking range

100*100mm/200*200mm/300*300mm

Minimum line width

0.01mm

Minimum character

0.1mm

Marking speed

10000mm/s

Marking depth

0 ~0.5mm

Engraving line speed

≤7000mm/s

Repeatability accuracy

±0.001mm

Beam quality

M2:1.2~1.8

Marking Format

Graphics, text, bar codes, two-dimensional code, automatically

marking the date, batch number, serial number, frequency,etc.

Graphic format supported

bmp,jpg,gif,tga,png,tif,ai,dxf,dst,plt,etc.

working voltage

220V±10%/50Hz/4A

Unit power

<0.5kw

Use of the environment

Clean and dust free or dust less

Working condition:Humidity

5%-75%,free of condensed water

Laser module life

>100000 hours

Net weight

125kg

Packing size

700*900*1380mm


Applicable Materials:
Metals (including rare metals), engineering plastics, electroplating materials, coating materials,coating materials, plastics, rubber, epoxy resin, ceramic, plastic, ABS, PVC, PES, steel, titanium, copper and other materials

appliances, communication products, sanitary ware, tools, accessories, knives, eyeglasses and clocks, jewelry, auto parts, luggage buckle, cooking utensils

stainless steel products and other industries.


Accessories part







Look for agents all over the world!

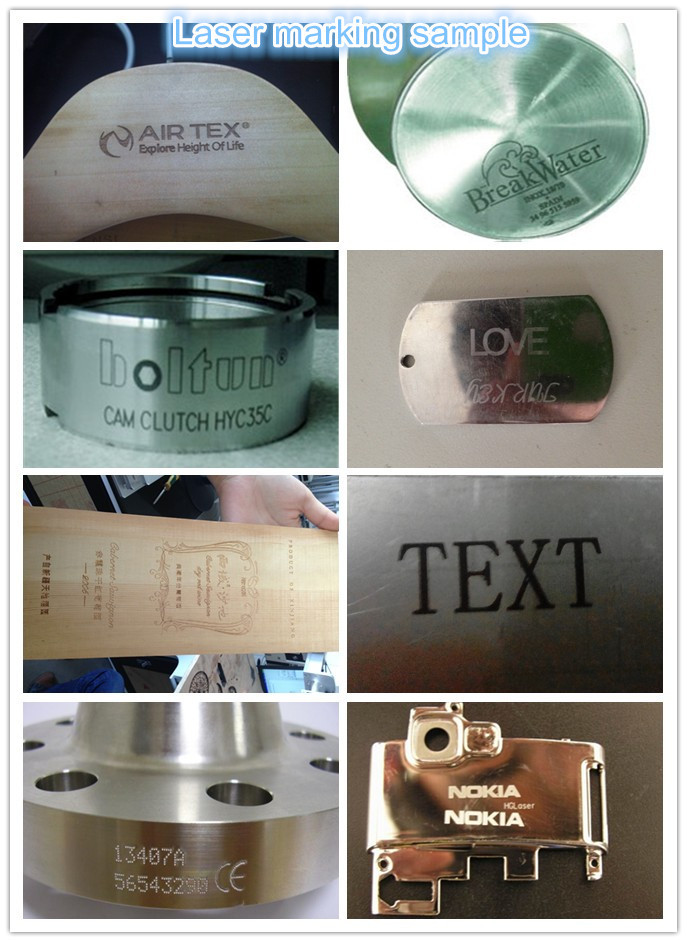

sample






Delivery and Transport:

1.FOB----The nearest port is Qingdao port,and we can also delivery

the machine to other port according to your request.

2.CIF-------Please tell me what’s the destination port when you need CIF price.

3.If you need others, please tell me and I’m pleasure to do for you.
