Views: 9 Author: Site Editor Publish Time: 2021-08-03 Origin: Site

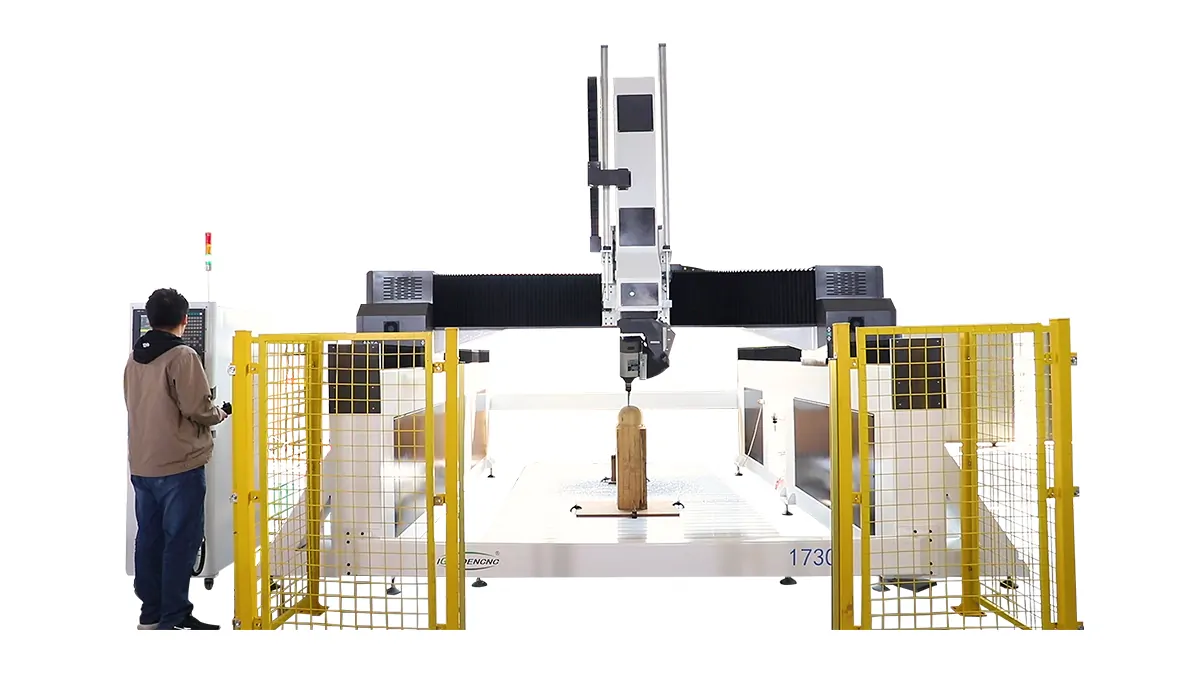

5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping. The 5 Axis CNC router has a wide range of applications in furniture, advertising, mold, decoration, construction and other fields and industries. In terms of functions, it can cut, engrave, drill, mill and groove. In regard to materials, 5 Axis router can process various wood materials, plastics, stone, soft metals and composites.
1. Name : High speed precision 5-axis vertical milling machining center.
2. Adopt Spindle travel type : Higher material removal rate.
3. Structure of machine: Gantry framework form.
4. Material of machine: Mineral cast stone, its damping parameter is 6-10 times than cast iron, linear expansion coefficient is 5 percent of cast iron. It has higher capability of vibration suppression , Thermal deformation than cast iron.
5. The optimal spindle support: Y axis adopt 4 guide way support.
6. Worktable: Double-wall support and double drive.
7. Easy and reliable structure of over bed : the circular knife library together with machine tool over bed.
8 .Axis control: A axis can choose the single driving and double driving, X/Y/Z support the semi closed control or full closed control.
9. Additional services: supply the laser test and Feedback ultra-high precision package.
10. Equipped with systems and equipment: CNC, intelligent power ,servo driving, torque motor ,spindle motor.
5 axis cnc router application:
Wood-working industry: Ideally suitable for furniture decoration,musical instruments,wooden crafts,solid wood furniture,MDF paint-free door,wood composite door,cabinet,kitchen doors,windows,night table,etc.
Decoration industry: Art model,Wall Art,screen felief engraving and cutting,decoration processing,gifts wrapping,waved plate,electrical cabinets panels,sports equipment,and other wooden industrial products.
Advertisement: Acrylic,double color plate,PVC,ABS board,aluminum plate,density board,artificial stone,organic glass,soft metals like aluminum and copper,cut matrix,character,signs,trademar.
Why Choose 5 axis CNC machining from igoldencnc
The quality of the finished product that has been manufactured using 5 axis CNC maching process depends not just upon the process but the machinery used and the team in charge. Expertise in the process, knowledge in correctly setting up the job and quality control during manufacturing are critical elements to a successful outcome. Using the latest in 5 axis CNC machinery will maximise the quality, speed and efficiency of the project.、
We are a company integrating manufacturing and sales of CNC routers, laser engraving machines, laser cutting machines, plasma cutting machines, cutting plotters, etc. The main configuration all adopt top parts imported from Italy, Japan, Germany, etc.We adopt international advanced producing technologies to improve our products. Our products are widely used in advertising, woodworking, artworks, model, electric, CAD/CAM industry models, clothing, package printing, marking, laser sealing and so on.
Our company adheres to the Market-Oriented business principles, and implements the business philosophy of "Quality First and Customer First". We have set up more than 20 sale and service departments around China which can offer our customers the services of design, fixing, training, maintenance and so on. Besides sale in China, our products exports around the world including the Middle East, Africa, Europe and the USA.
Product Parameter
Description | Parameters |
---|---|
Stroke | 1720*3040*750mm |
System | Syntec control System |
Countertop | Aluminum profile countertop |
Rail | Taiwan HINWIN |
Spindle | 14KW SCM five-axis spindle + swing head |
Tool magazine | 8 disc change tools |
Drive motor | Yaskawa, Japan |
Inverter | Delta |
Reducer | SHIMPO reducer |
