Our vast experience in the supply of fiber laser cutting machines makes us your idea partner for our wide range of metal cutting solutions. Our fleet of fiber laser cutting machines is extremely competitively priced and we offer customised and tailored solutions upon request.
With a team of highly experienced nationwide engineers we are on hand to assist when we’re needed.
1.Metal Tube and Plate Dual Use

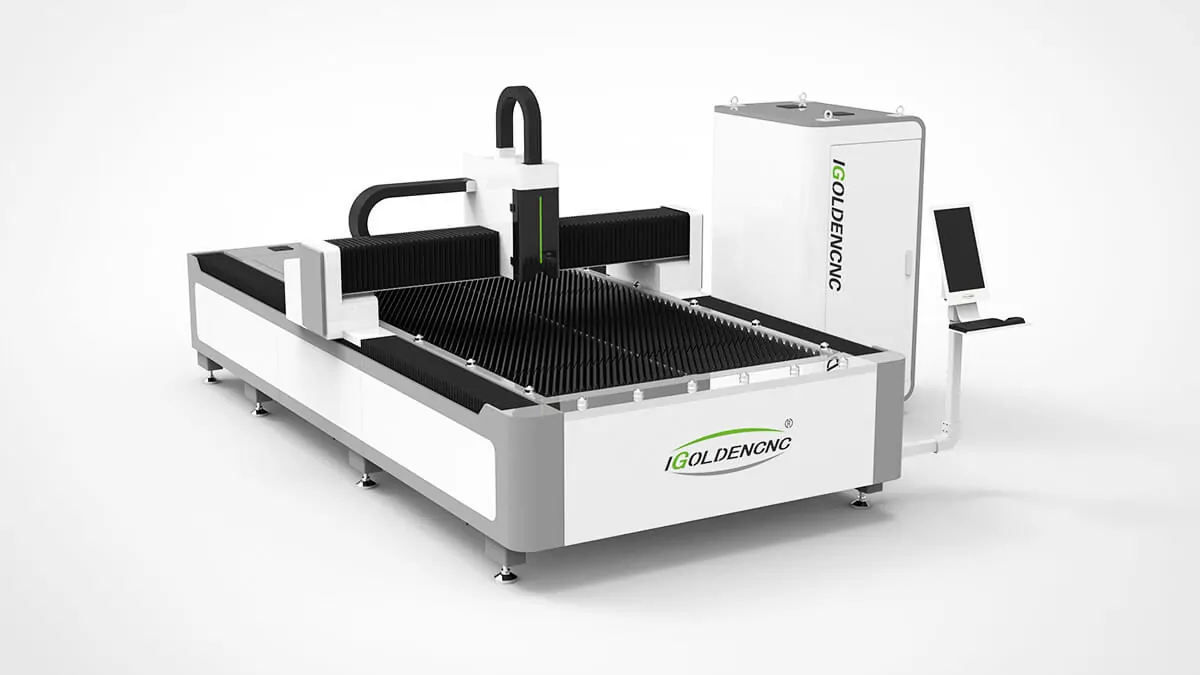

In order to meet the increasingly complex needs of consumers, IGOLDENCNC is targeted at market demand, independently developed LF3015CR sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.
2.Clamp Design
It adopts an electric clamp design on both sides and it can modulate the center automatically. The diagonal adjustable range is 20-200mm.
3.Exchanging Platform
It adopts an up and down exchange platform, and the converter is responsible for controlling the exchanging motor.
The machine is able to finish the platform exchanging within 15s.
4.3rd Generation Aviation Aluminum Gantry
It is manufactured with aerospace standards and formed by 4300 tons press extrusion molding. After aging treatment, its strength can reach 6061 T6 which is the strongest strength of all gantries. Aviation aluminum has many advantages, such as good toughness, light weight, corrosion resistance, anti-oxidation, low density, and greatly increase the processing speed.
5.Dual Use and Cost-saving
LF3015GCR fiber laser cutting machine can not only cut metal plates, but also metal pipes. It has many uses and can save the space of more than 50%, which effectively improve productivity.
6.Fractional Automatic Support Installation
It employs intelligent tube support design, which can solve the deformation problems in the process of long tube cutting.
adopts the advanced German IPG fiber laser, available to cutting most of the metal sheet materials. Integrated design of machines tool accessories, fast disassemble and installation; funnel collection of both left side and right side, space-saving, energy saving, and low cost. Movable Gantry machine tool structure, to ensure long-time stability and security; Import servo systems and CNC systems, with good compatibility, strong stability, convenient maintenance and excellent processing capacity.
fiber cutting machine applicable materials:
stainless steel, carbon steel, alloy steel, copper, brass, silicon steel, gavanized steel, nickel titanium alloy, nikeel chromium alloy, titanium alloy and other metal materials.
*Different options of famous brand laser source(Reci/Raycus/IPG), We have professional sales and technician who can suggest you the most suitable laser source, depending your target price.
The beam body adopts the overall aluminum casting method, annealing eliminates internal stress and processes, The process is casting →annealing stress → rough machining → vibration aging → semifinishing → vibration aging →finish machining, the machine is machined after tempering, the strength, rigidity and stability of the beam are guaranteed, the precision of the beam can be maintained for a long time. Mainly for the high speed cutting of high power laser cutting machine provides an effective guarantee.
ACCURL steel frames undergo annealing at over 600⁰ to relieve stress. They are built to last years of heavy use without distortion.
Auto changing pallet system allows over 1800kg loading weight.
A heavier frame means less vibration and better accuracy. the machine frames are reinforced to minimize twists and deformation while the robust frame of the machine is joined to the chassis by steel bars.
Machine Parameters
Model | iGR-FT 3015 | |
Working area/ Tube length | 3000*1500mm/ 6000mm | |
X axis stroke | 1500mm | |
Y axis stroke | 3000mm | |
Z axis stroke | 300mm | |
Tube diameter | 20-220mm | |
Accuracy | X, Y axis positioning accuracy | 0.05mm |
X, Y axis repositioning accuracy | 0.03mm | |
Speed | W axis rotate angle | n*360 |
W axis max. ratate speed | 80rpm | |
X, Y axis max. running speed | 150m/min | |
U axis max. positioning speed | 800mm/s | |
X, Y axis max. accelerated speed | 1.5G | |
Power supply | Phase | 3 |
Nominal voltage | 380V | |
Frequency | 50/60Hz | |
Protection grade | IP65 | |
Machine body | Max. working loading | 1000kg |
Body weight | 2600kg | |
Size(L*W*H) | 8060*3000*1965mm | |
Laser power | 500w/ 750w/ 1000w/ 1500w/ 2000w/ 3000w/ 4000w/ 5000w/ 6000w/ 8000w/ 10000w/ 12000w | |
Worktable optional | 4000*1500mm/ 4000*2000mm/ 6000*2000mm/ 6000*2500mm | |
Tube length optional | 3000mm/ 9000mm |
