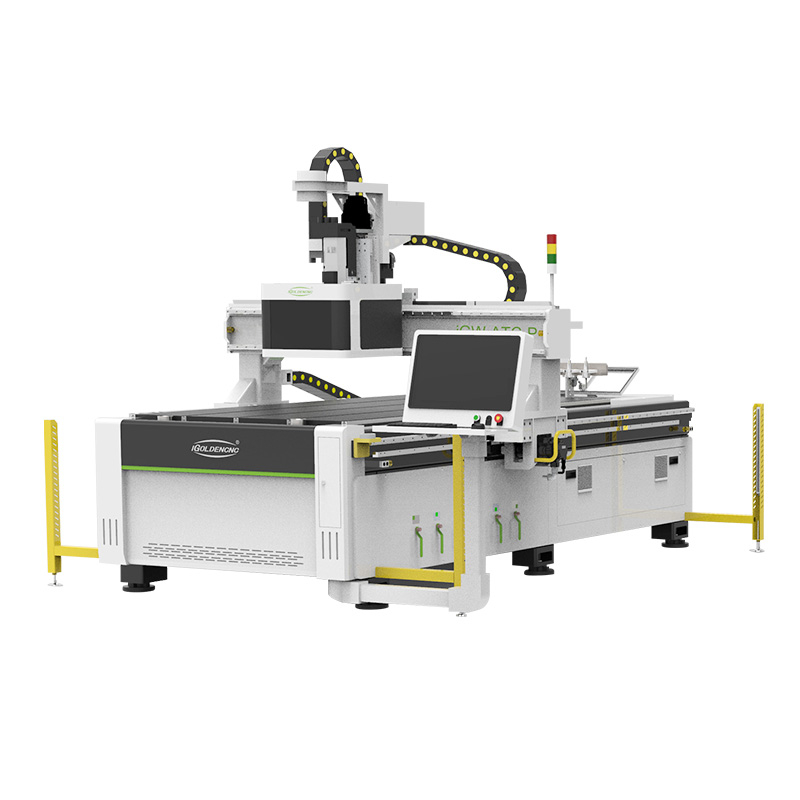

Linear ATC CNC Router Descriptions :
There are two tool change modes for inline tool change and disc tool change. Widely used, including engraving, milling, chamfering, side milling, drilling, cutting, grooving, etc.
Features of Linear ATC CNC Wood Router:
1. Welded structure by thick profiled steel stabilized under high temperature, ensures minimum distortion, excellent rigidity and powerful strength.
2. Japanese YAKSAWA servo motor makes machine stable running with low noise, high speed and high accuracy.
3. Italy HSD spindle makes machine with high precision and long service time and stable movement.
4. Configured with imported tool magazine of 8 tools the machine can change tools speedy and freely. Changing tools in 8 seconds.
5. Tool sensor enables the machine compensate the tolerance of the tool length.
6. Strong power suction of Yongdun free-oil pump.7. Imported Taiwan SYNTEC control system, separated keyboard control, color LCD display add machine more versatility.
8. Strong dust collector ensures site cleanliness during the machine operation.
9. Automatic lubricating system, one touch can finish periodic maintenance easily.
4x8 1325 Automatic wood router details:
Tube welding bed
More stable and effectively improves the rigidity and precision of the equipment.
21 inch screen
High-definition display, easy to operate
Integrated cabinet
Easy to coordinate, can be rotated to a suitable position for operation
Hidden lifting tool magazine
Aluminum anodized tool magazine,Effective protection of tools.
Grating safety protection
In order to avoid damage to man and machine, optional grating protection device.
1325 Linear ATC CNC Router Parameters：
| Model | iGW-ATC-P1325 |
| Working area | 1300*2500*250mm |
| Spindle | HQD 9.0kw Air Cooling Spindle |
| Max. Running Speed | 50000mm/min |
| Max. Working Speed | 30000mm/min |
| Repositioning Accuracy | 0.02mm |
| Machine Body | Pipe welded frame bed |
| Gantry | Steel Structure |
| Worktable | Vacuum Suction with T-slot Table |
| Tool library | Hidden tool magazine |
| Guide Rails | HIWIN |
| Ball Screw | TBI |
| Driver | YASKAWA Servo Drive and Servo Motor |
| Reducer | SHIMPO |
| Frequency Converter | Delta |
| Electrical Components | SCHNEIDER |
| Control System | Syntec |
| Protection | Grating protection system |
1325 4x8 ATC CNC Router Processing Samples:
Introduction
The most popular, industrial 3 axis ATC CNC router, perfect for professional CNC users, the Z series offers the robust construction that iGOLDENCNC products are known for, combined with a competitive set of configurations.
Hot applications of Industrial CNC Router With Auto Tool Changer:
>Wooden furniture industry: solid wood and composite doors, cabinet doors, sliding doors, paint-free doors, lacquered doors, soft-packed doors, flat panel carving, solid wood carving, panel furniture processing, antique mahogany furniture processing, solid wood mural carving and other industries;
>Wooden crafts industry: clock and watch frames, craft photo frames, calligraphic cards, electrical counter-tops, sporting equipment, thin aluminum plate engraving and carving;
>Advertising industry: acrylic, PVC, MDF, artificial stone, plexiglass, plastic, copper, aluminum and other soft metal plates.
Shandong iGolden CNC Technology Co.,Ltd., established in 2012, is a solution supplier of CNC application with key technology and independent intellectual property rights. The company integrates research and development with production, sales and after-sales.
Product lines cover 8 series and more than 100 models, such as woodworking machine, woodworking engraving machine, stone engraving machine, foam mold engraving machine, laser machine, plasma cutting machine, etc. We always provide customers with high-quality products, competitive price and excellent service.
