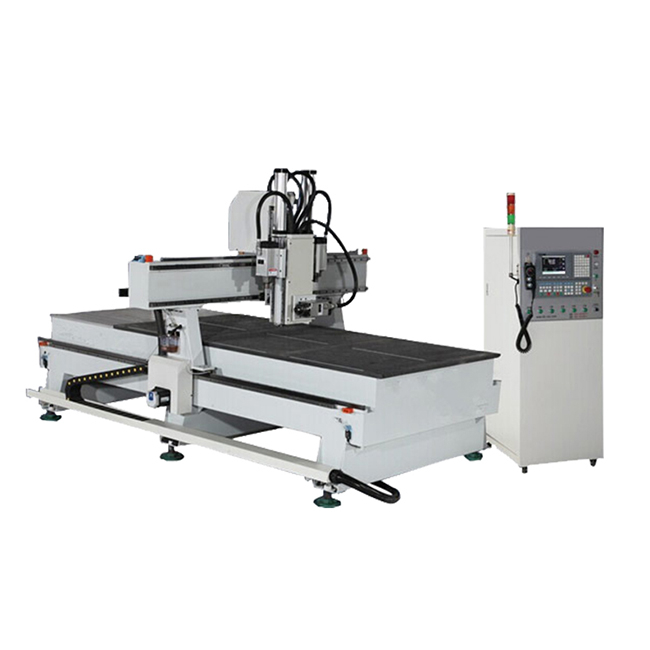

CNC Wooden Door Lock Making Machine Description:
It can not only carving the door panel, but also complete the processing of lock mortising, lock slot and lock step slot of the wooden door at one time.
CNC Wood Machine For Making Door Lock Parameter：
| Work itinerary | 1300*2500*200mm, one can swing around 90 degrees |
| Bed body | Thick-walled Steel Pipe |
| Gantry | Steel |
| Spindle | 4.5KW air-cooled spindle with different power spindles available |
| Spindle speed | 0-18000 rpm/min |
| Frequency converters | Fu/delta/day Care |
| Guide | Taiwan Upper Silver |
| Tooth rack | Taiwan Crescent |
| Motor | servo, Stepping (optional) |
| Driven | servo, Stepping (optional) |
| Gear Reduction Machine | Taiwan New Treasure (none) |
| XYZ structure | XY rack, Z Screw |
| Countertop structure | Vacuum adsorption table Aluminum profile Table (optional) |
| Vacuum system | Options available |
| Vacuum pump | 5.5KW water-cooled/5.5kw Air-Cooled |
| Oil injection system | Manual (automatic Optional) |
| Locating cylinders | No |
| Engraving instructions | G Code |
| Maximum Empty line speed | Maximum Empty line speed |
| Max engraving speed | 20000mm/min |
| Operating voltage | ac220v/380v-50hz |
| Operating system | Weihong System/dsp/bao Yuan/shan Long |
| Gross weight | 2500KG |
| Kinematic positioning accuracy | ±0.05mm |
| Repeat positioning accuracy | ±0.02mm |
Three-process Lock Hole cnc router Characteristics：
1, Structural stability: Industrial production models, heavy-duty full steel structure welding, tempering vector effect treatment, strong non-deformation.
2, Parts excellent: Taiwan control system, spindle bearings for high-precision ceramic bearings, low noise, long Life.
taiwan-produced linear guide: German-made ball screw, heavy load-bearing capacity, the knife Precision.
3, Modular Structure Design: Choose to add a variety of processing spindle configuration, can be carved, hollow, cutting and milling Work.
4, complete functions: processing parts such as the need for three knives to complete, eliminating the cumbersome tool change, with the function of machining center, the middle spindle can be vertical or one-way horizontal work, in the need of side work, the middle shaft and as a horizontal axis to complete the groove, drilling Work.
5, high adhesion vacuum adsorption device, up to 230 cubic meters/hour. 6, software compatibility: Open software interface, can be compatible.
Three-process Lock Hole cnc router Scope of application：
Wooden door plane keyhole shape of the milling Groove hole molding, can also be used for wooden doors, door frames, window frames, Casement tenon groove.
CNC Wooden Door Lock Mortising Machine Application:
